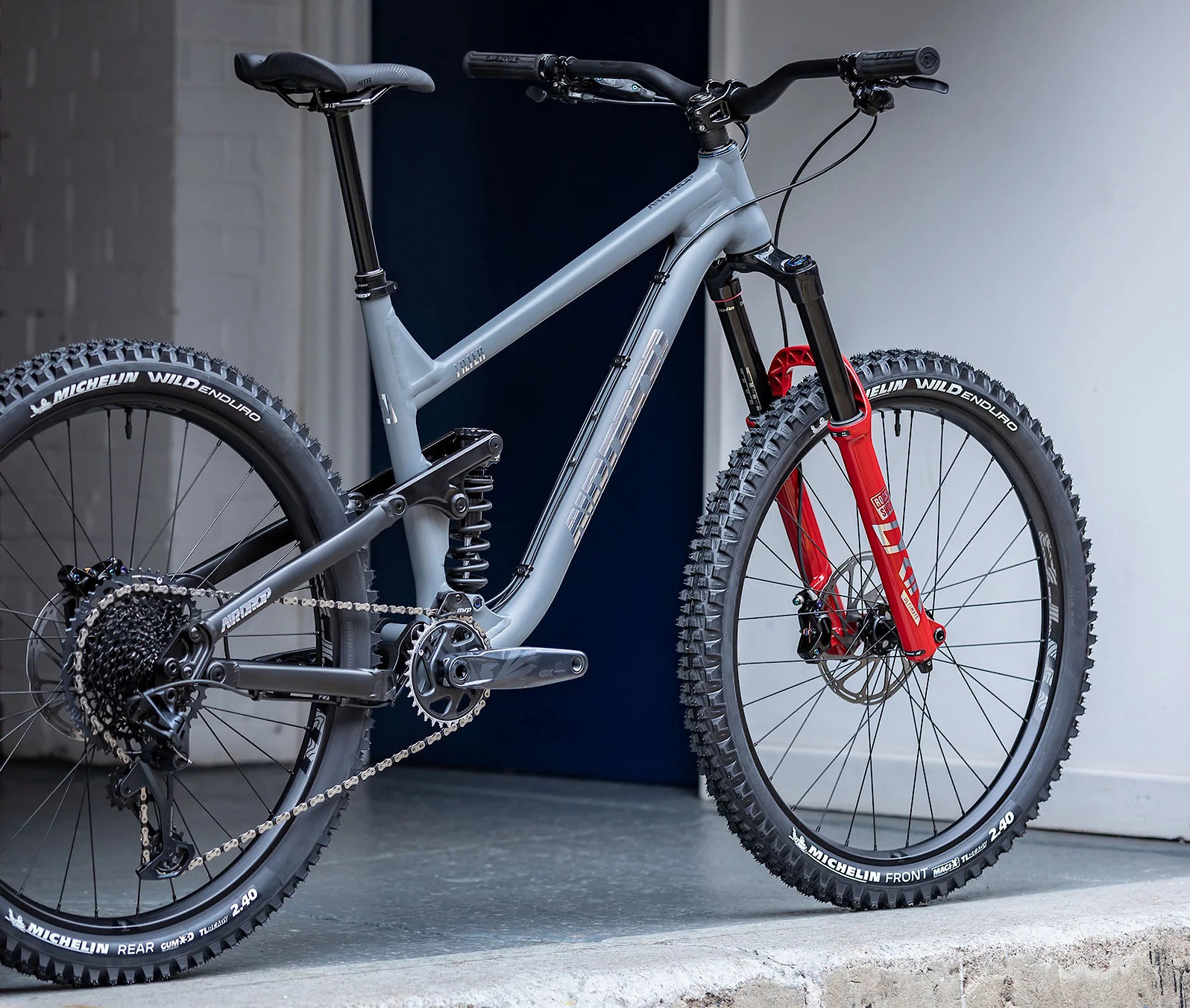

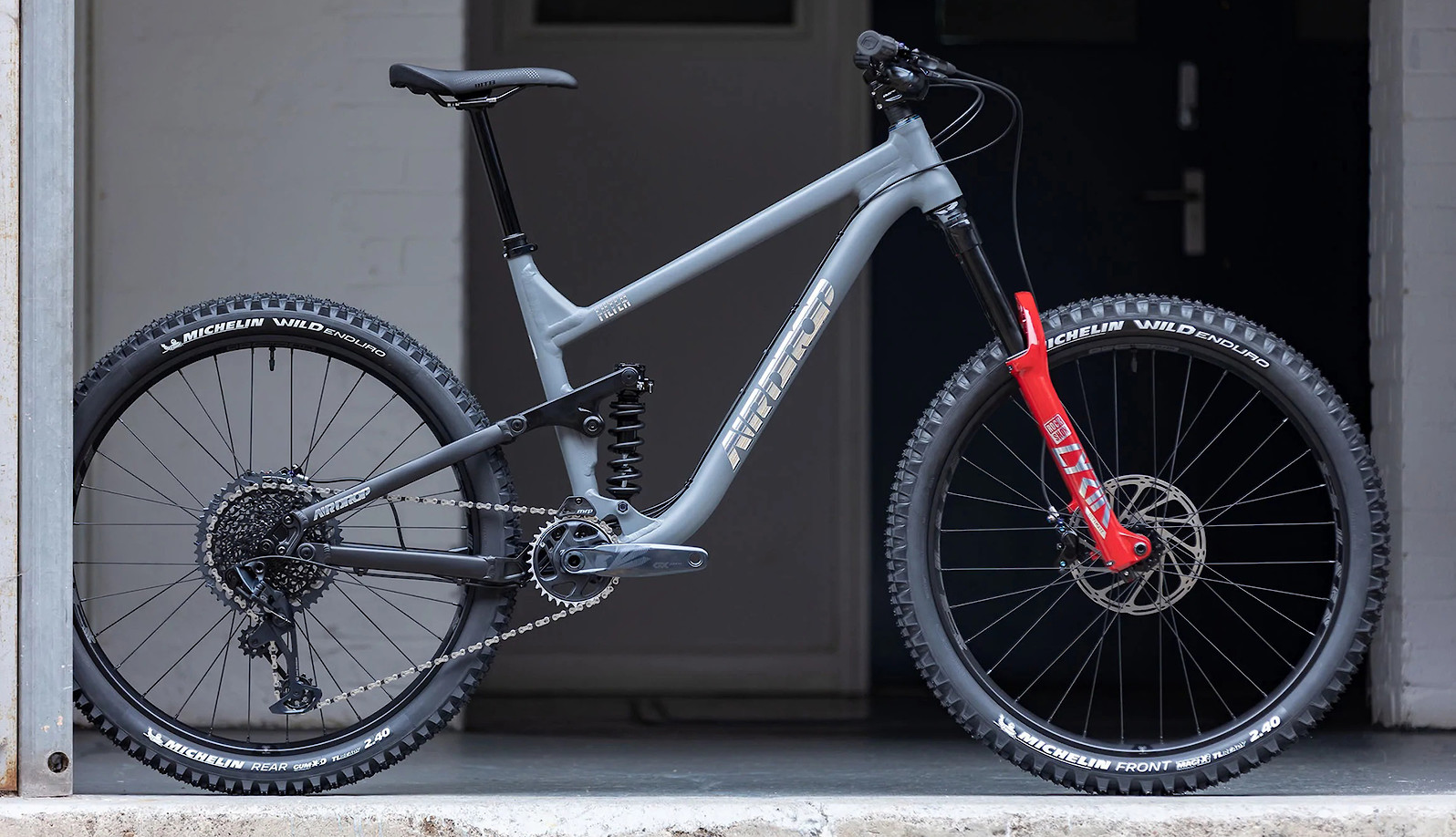

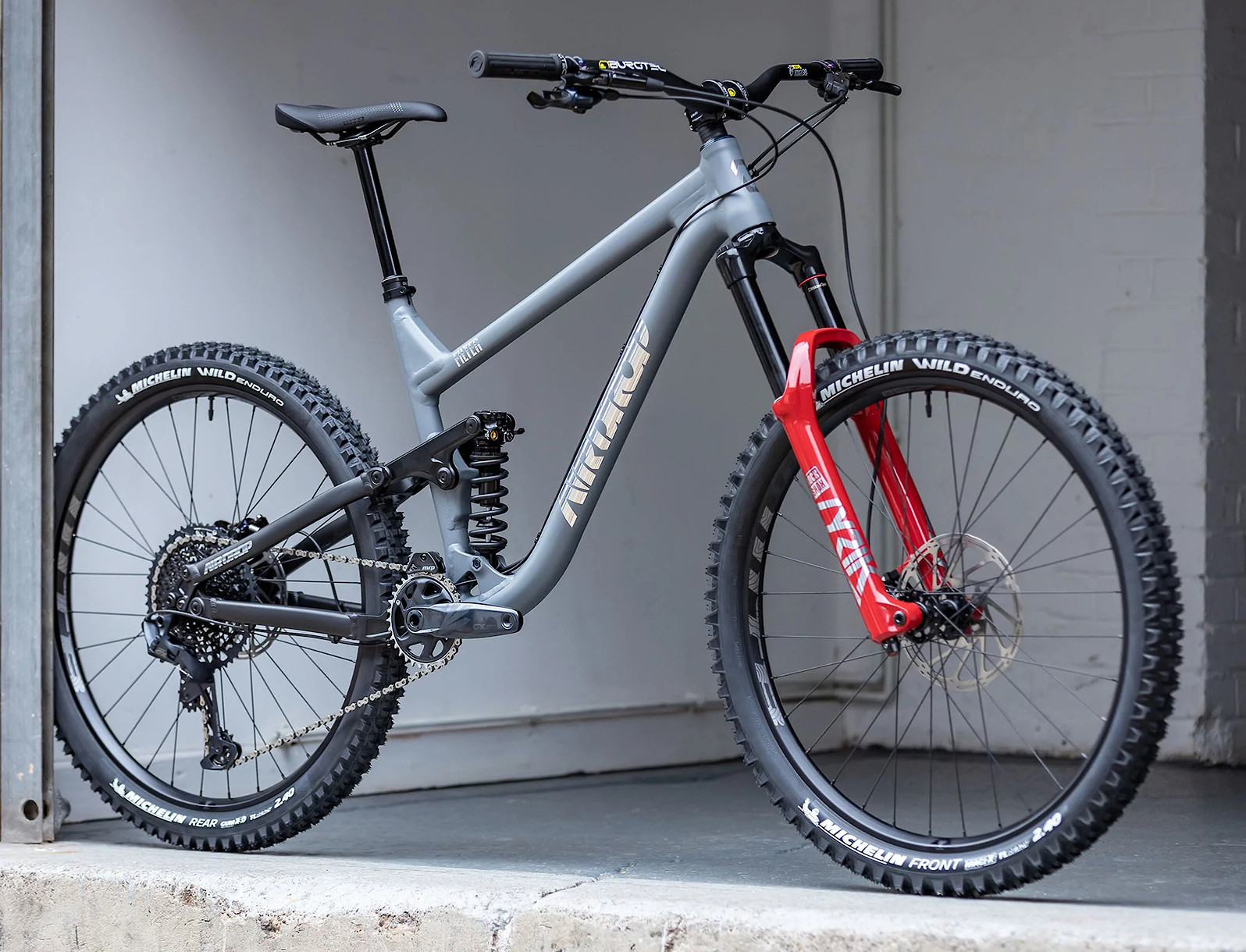

2022 Airdrop Filter Core LTD Edition Bike

s1600 photo 942694.jpg?VersionId=02DZ7jz51VSt9J6f

c70 photo 548533.jpg?VersionId=v8fxl159m91JvbW6Zi1P10McY

s1600 photo 548533.jpg?VersionId=O68llv7V7A.UyixYMHtc15xUiH.jQl

Airdrop

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Airdrop Filter Core LTD Edition Bike

Model Year

2022

Riding Type

Trail

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

Size	SM	MD	LG	XL

Head Tube Angle	64.5°	64.5°	64.5°	64.5°
Head Tube Length	115mm	120mm	125mm	130mm
Seat Tube Angle	74.5°	74.5°	74.5°	74.5°
Seat Tube Length	400mm	425mm	450mm	480mm
Bottom Bracket Height	22mm drop	22mm drop	22mm drop	22mm drop
Chainstay Length	430mm	430mm	430mm	430mm
Wheelbase	1167.2mm	1199.3mm	1221.4mm	1248.5mm

Reach	425mm	455mm	475mm	500mm
Stack	605.3mm	609.7mm	614.5mm	618.8mm
Additional Info	Above seat tube angle values are for actual angle; effective values at example saddle heights: 78.7° (600mm), 78.1° (700mm), 77.7° (800mm). All specifications listed are with 160mm travel fork with 542mm axle-to-crown length and 37mm offset.

Wheel Size

27.5" (650b)

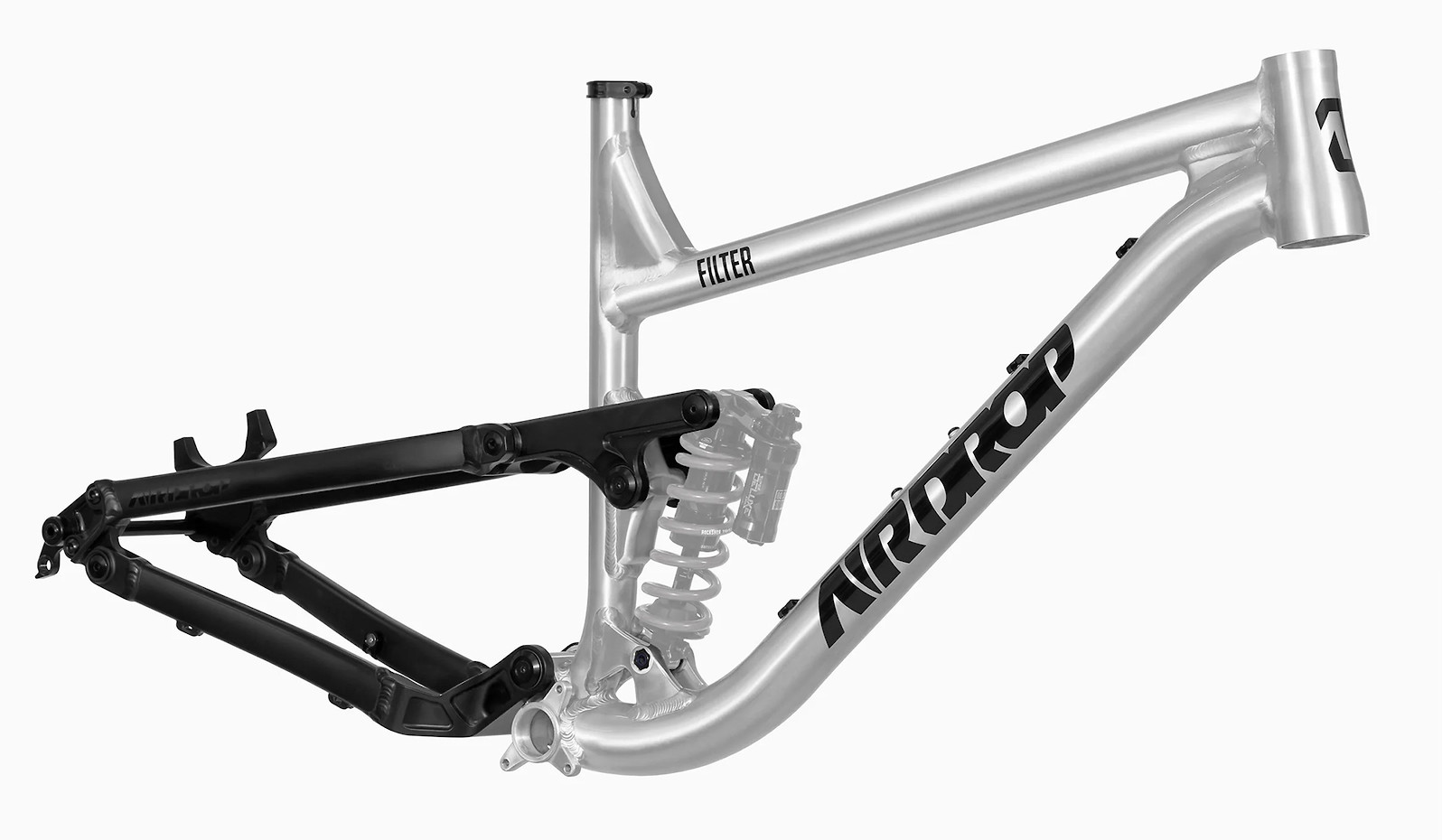

Frame Material

Aluminum

Frame Material Details

Custom-butted 6061-T6 alloy

Rear Travel

135mm

Rear Shock

Cane Creek DB Coil IL, trunnion mount, 185mm x 55mm

Fork

RockShox Lyrik Ultimate RC2

Fork Travel

160mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Cane Creek 40, ZS44 upper, ZS56 lower

Handlebar

Burgtec RideHigh, 800mm width, 38mm rise, 35mm clamp diameter

Stem

Burgtec Mk3 Enduro, 35mm length, 35mm bar clamp

Grips

Burgtec Bartender Pro, lock-on

Brakes

SRAM Code RSC, 4-piston, SRAM CenterLine rotors (200mm front, 180mm rear)

Brake Levers

SRAM Code RSC

Drivetrain

Shifters

SRAM GX Eagle, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM GX Eagle, 12-speed

ISCG Tabs

ISCG05

Chainguide

MRP 1x upper slider

Cranks

SRAM GX Eagle 7K DUB, 170mm length

Chainrings

SRAM GX Eagle, 32 tooth, direct mount

Bottom Bracket

SRAM DUB, 73mm English/BSA threaded

Pedals

None

Chain

SRAM GX Eagle, 12-speed

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

WTB Proterra Tough i30 wheelset, 30mm inner width

Hubs

WTB Proterra Tough i30 wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver

Spokes

WTB Proterra Tough i30 wheelset

Tires

Michelin Wild Enduro, Magi-X front, Gum-X rear, 27.5" x 2.4"

Saddle

WTB Volt Race Custom

Seatpost

OneUp V2.1 dropper, 180mm drop

Seatpost Diameter

30.9mm

Seatpost Clamp

Airdrop CNC, single bolt, 35mm

Rear Dropout / Hub Dimensions

148x12mm Boost

Max. Tire Size

27.5" x 2.6"

Bottle Cage Mounts

One inside front triangle

Colors

Raw with Gloss powdercoat, Grey with Matte powdercoat; multiple decal color options

Warranty

2 years frame, with 5 year crash replacement program

Weight

31 lb 15.5 oz (14,500 g)

Miscellaneous

• Four-Bar Horst Link rear suspension design
• External cable routing with internal dropper post routing
• Above weight given for size LG
• Includes WTB TCS rim tape and tubeless valves, with Muc-Off tubeless tire sealant
• UK price: 3499 GBP
