2023 Trek Session 8 29 GX Bike

s1600 photo 533482
c70 photo 533482.jpg?VersionId=AqZosh5T3VNB
c70 photo 307321
c70 photo 574116.jpg?VersionId=MhMTX04EfT8kse21
c70 photo 820441.jpg?VersionId=R5jx.71s o6VyHo0tXnFe
s1600 photo 533482 s1600 photo 307321 s1600 photo 574116 s1600 photo 820441
Related:
Trek
Where To Buy
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
$5,499.99
Session 8 29 GX
$5,499.99
Free Delivery on purchases over £20.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Session 8 29 GX Bike
Model Year
2023
Riding Type
Downhill
Freeride / Bike Park
Rider
Unisex
Sizes and Geometry
R1 (High, Low)
R2 (High, Low)
R3 (High, Low)
Wheel Size
29"
Frame Material
Aluminum
Frame Material Details
Alpha Platinum Aluminum, magnesium rocker link; molded chainstay, lower down tube, and shuttle guard protection
Rear Travel
200mm
Rear Shock
Marzocchi Bomber Coil, 250mm x 72.5mm
Spring rate: 400lbs (R1), 450lbs (R2), 500lbs (R3)
Fork
RockShox BoXXer Select, DebonAir spring, Charger RC damper, 46mm offset, 20x110mm Boost thru axle
Fork Travel
200mm
Head Tube Diameter

Headset
FSA Orbit, sealed cartridge bearings; includes geometry-adjust angled cups
Handlebar
Bontrager Line, alloy, 780mm width, 27.5mm rise, 35mm clamp diameter
Stem
Bontrager Line Pro, direct mount, 50mm length, 35mm bar clamp
Grips
Bontrager XR Trail Elite, nylon lock-on

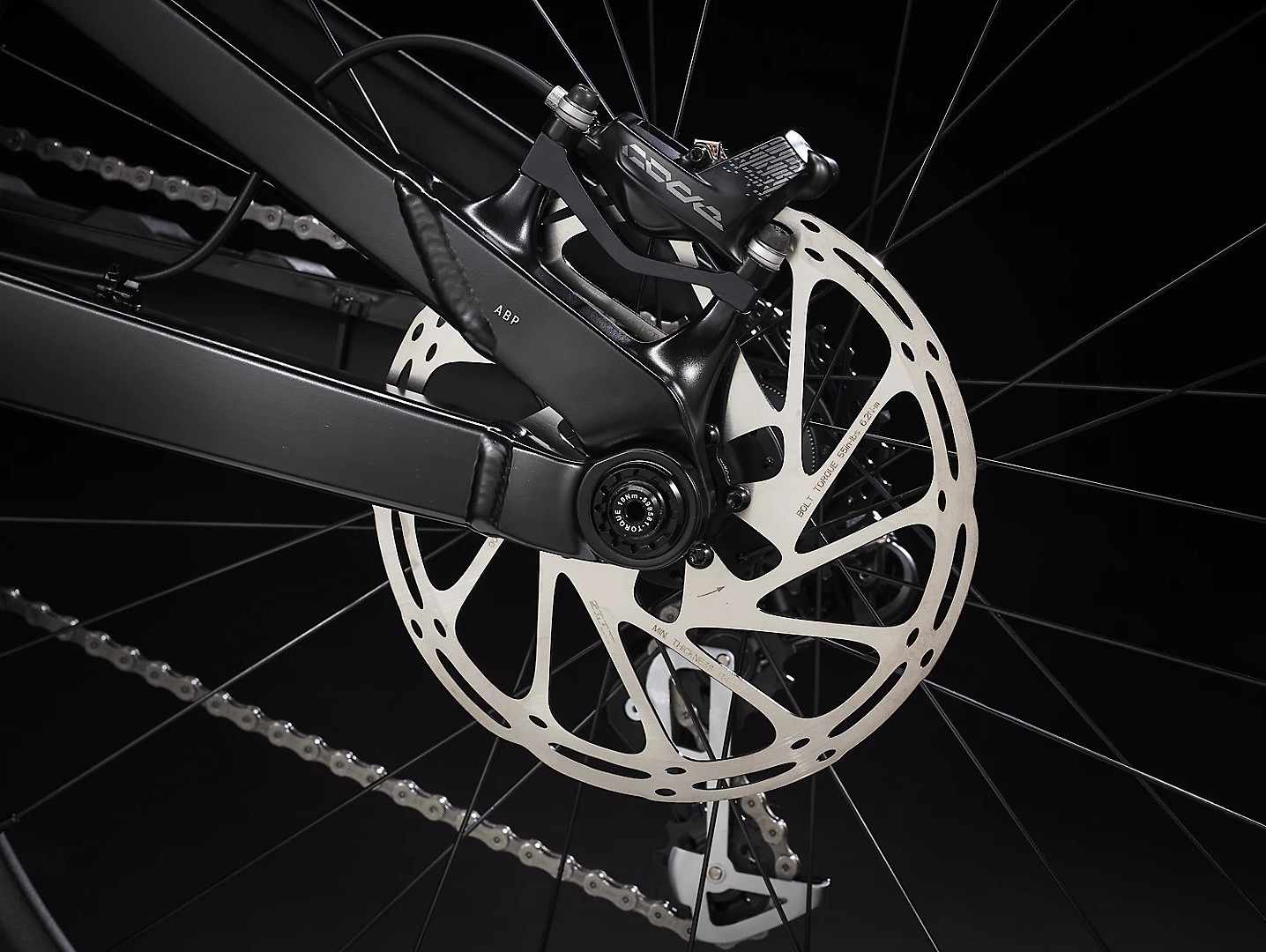

Brakes
SRAM Code R, 4-piston, SRAM CenterLine 6-bolt round-edge rotors (200mm front, 180mm rear)
Brake Levers
SRAM Code R
Drivetrain
1x
Shifters
SRAM GX DH, 7-speed
Front Derailleur
None
Rear Derailleur
SRAM GX DH, 7-speed, medium cage
ISCG Tabs
ISCG05 (lower two bolts only)
Chainguide
Integrated upper idler pulley guide, lower pulley with bashguard
Cranks
Truvativ Descendant DH DUB, 165mm length
Chainrings
Truvativ Descendant DH, 34 tooth, steel
Bottom Bracket
SRAM DUB, 83mm English/BSA threaded
Pedals
Wellgo BO-87B, alloy body, CrMo axle, replaceable pins
Chain
SRAM PC-1110, 11-speed
Cassette
SRAM PG-720, 7-speed, 11-25 tooth
Rims
Bontrager Line DH 30, tubeless ready
Hubs
Bontrager Line DH wheelset, 110x20mm Boost front, 157x12mm rear with Rapid Drive 108 freehub and HG driver
Spokes
Bontrager Line DH wheelset
Tires
Bontrager G5 Team Issue, wire bead, 2-ply 60 TPI, 29" x 2.5"
Saddle
Bontrager Arvada, hollow CrMo rails, 138mm width
Seatpost
Bontrager Rhythm Elite, zero offset, 330mm length
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
157x12mm
Max. Tire Size
2.6"
Bottle Cage Mounts
None
Colors
Satin Trek Black
Warranty
Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
39 lb 8.1 oz (17,920 g)
Miscellaneous
• High-pivot suspension design
• ABP (Active Braking Pivot)
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Suspension progressivity adjustable (20% or 25%) via flip chip at lower shock mount
• Compatible with mixed ("Mullet") setups: 29" front wheel, 27.5" rear wheel
• Internal or external cable routing
• Includes Bontrager TLR tubeless rim strips
• Weight given for size R2 set up tubeless
Price
$5,499.99
