2018 Transition Smuggler 5
4/21/2024 6:15pm

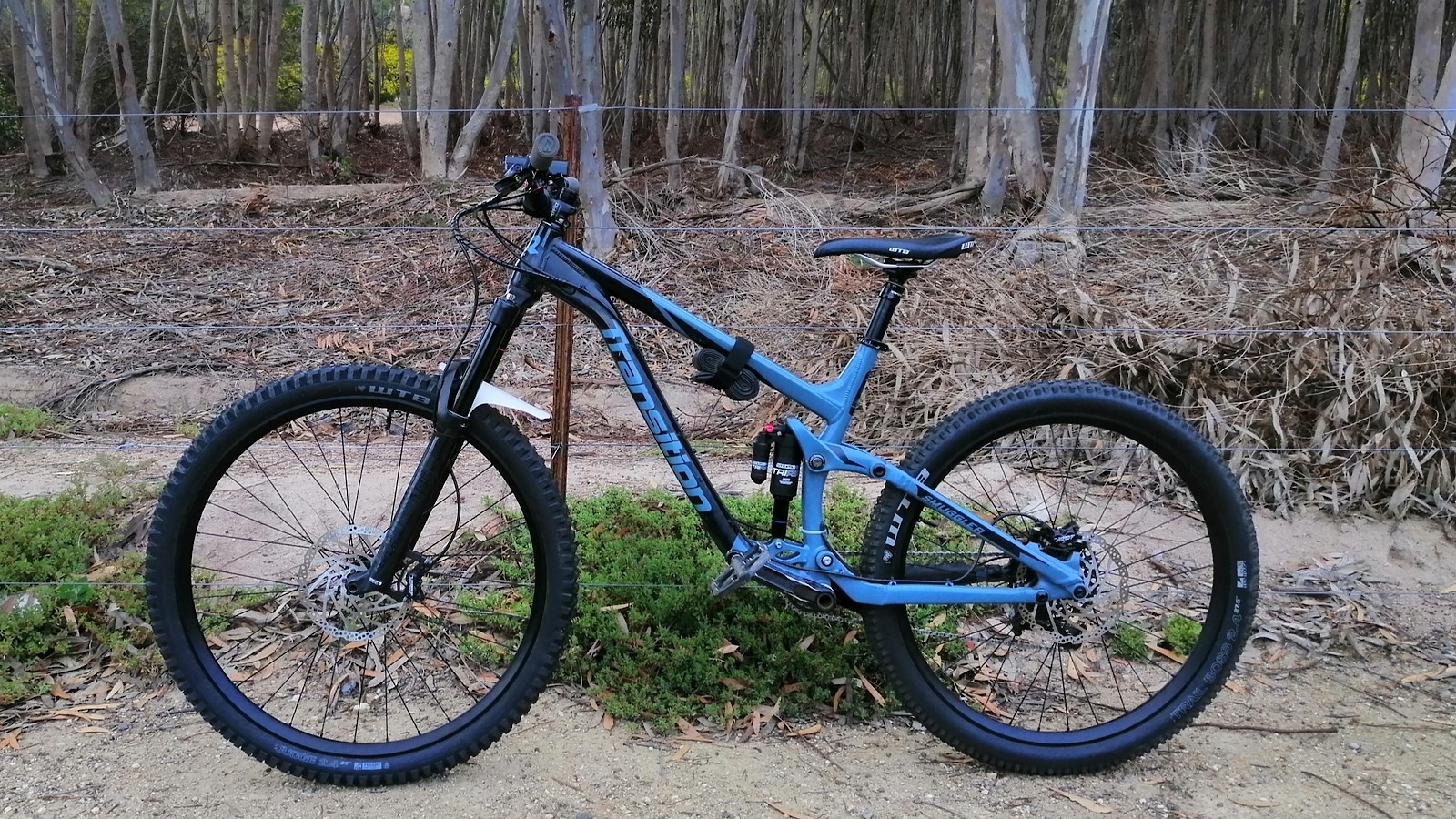

Current setup 29/27.5150mm/139mm
My version of a DVC/RUNT.
Triair 3cr. Great shock.

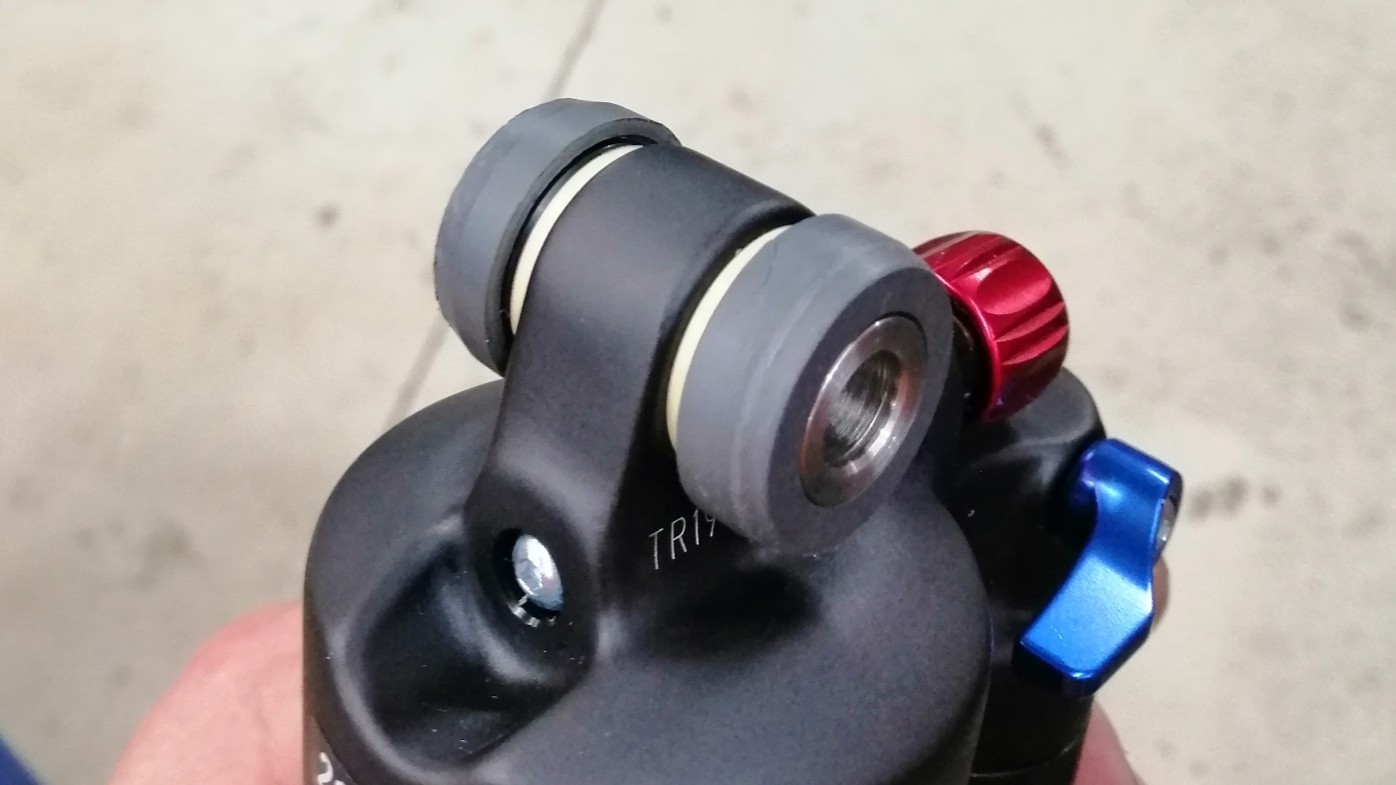

OEM shock was bearing mount, so I turned these up on the lathe for the TriAir
Custom eyelet hardware.

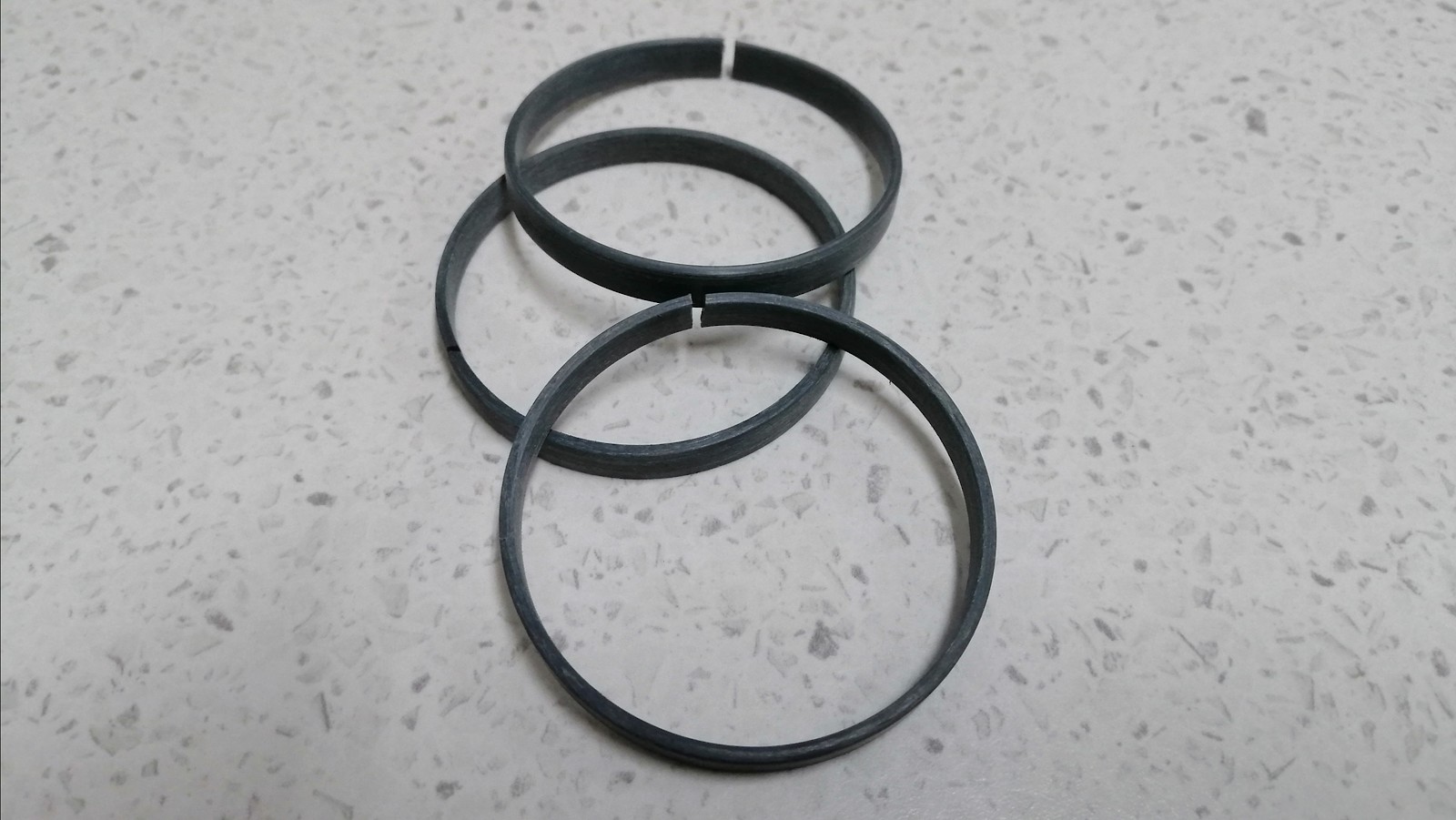

Shock didn't come with any volume bands. Knocked these up on the lathe as well.

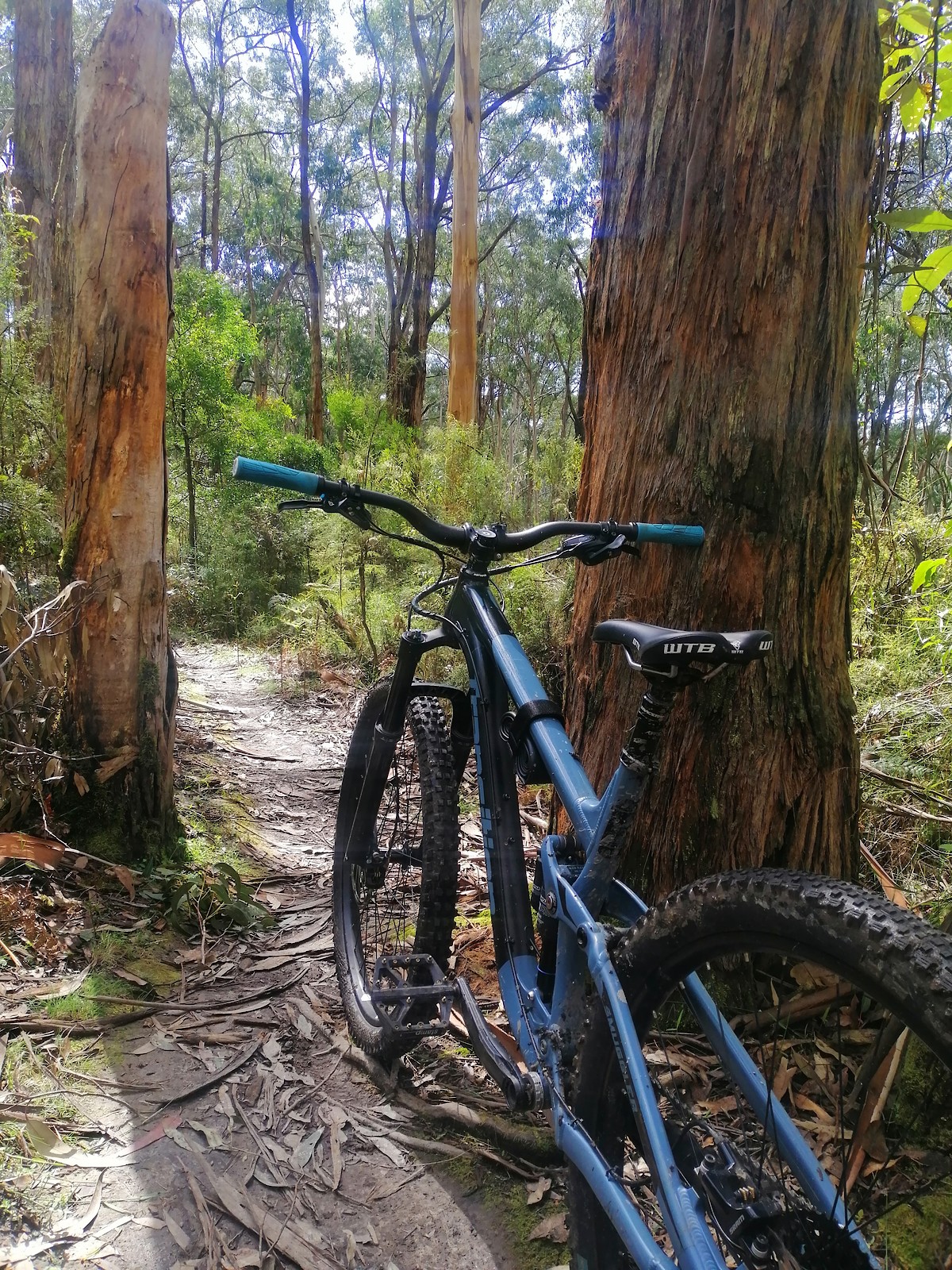

Current setup 29/27.5150mm/139mm
Parts
Brand
Model
Additional info
Parts
Frame
Transition
2018 Smuggler
Alloy NX build with some upgrades.
Frame:
Transition 2018 Smuggler.
Misc: Alloy NX build with some upgrades.
Rear Shock
SR Suntour
TRIAir 3CR
Custom volume spacers
Rear Shock:
SR Suntour TRIAir 3CR.
Misc: Custom volume spacers
Fork
Rock Shox
35mm Revelation
150mm Debonair upgrade with JBAC (DVC/RUNT)
Fork:
Rock Shox 35mm Revelation.
Misc: 150mm Debonair upgrade with JBAC (DVC/RUNT)
Headset
FSA
No.57E
Headset:
FSA No.57E
Handlebar
Renthal
Fatbar 35
770mm, 40mm rise
Handlebar:
Renthal Fatbar 35.
Misc: 770mm, 40mm rise
Stem
Race Face
Aeffect R 35
Stem:
Race Face Aeffect R 35
Grips
Deity
Supracush
Grips:
Deity Supracush
Brakes
Tektro
HD-M745 4 piston
Brakes:
Tektro HD-M745 4 piston
Brake Levers
Tektro
HD-M745
Brake Levers:
Tektro HD-M745
Shifters
SRAM
NX
Shifters:
SRAM NX
Rear Derailleur
SRAM
NX
Rear Derailleur:
SRAM NX
Cranks
Race Face
Aeffect
Cranks:
Race Face Aeffect
Chainrings / Sprocket
Race Face
Aeffect
Chainrings / Sprocket:
Race Face Aeffect
Bottom Bracket
Race Face
Bottom Bracket:
Race Face
Chain
SRAM
Chain:
SRAM
Cassette / Rear Cog
SRAM
NX
Cassette / Rear Cog:
SRAM NX
Pedals
Crank Brothers
Stamp Large
Plastic fantastic. Extra long stainless steel pins
Pedals:
Crank Brothers Stamp Large.
Misc: Plastic fantastic. Extra long stainless steel pins
Front Rim
DT Swiss
XM481
Front Rim:
DT Swiss XM481
Rear Rim
DT Swiss
EX511
Rear Rim:
DT Swiss EX511
Hubs
DT Swiss
DT Swiss 350
Hubs:
DT Swiss DT Swiss 350
Front Tire
WTB
Judge 29x2.4
Front Tire:
WTB Judge 29x2.4
Rear Tire
WTB
Trail Boss 27.5x2.4
Rear Tire:
WTB Trail Boss 27.5x2.4
Saddle
WTB
Volt Comp
Saddle:
WTB Volt Comp
Seatpost
Race Face
Aeffect Dropper
Seatpost:
Race Face Aeffect Dropper
General Info
General Info
Model Year
2018
Model Year:
2018
Riding Type
Trail / All-Mountain
Riding Type:
Trail / All-Mountain
Weight
34 lb 0 oz (15,422 g)
Weight: 34 lb 0 oz (15,422 g)
Additional Info
Additional Info:
4/21/2024 6:15pm
