Specifications

Product

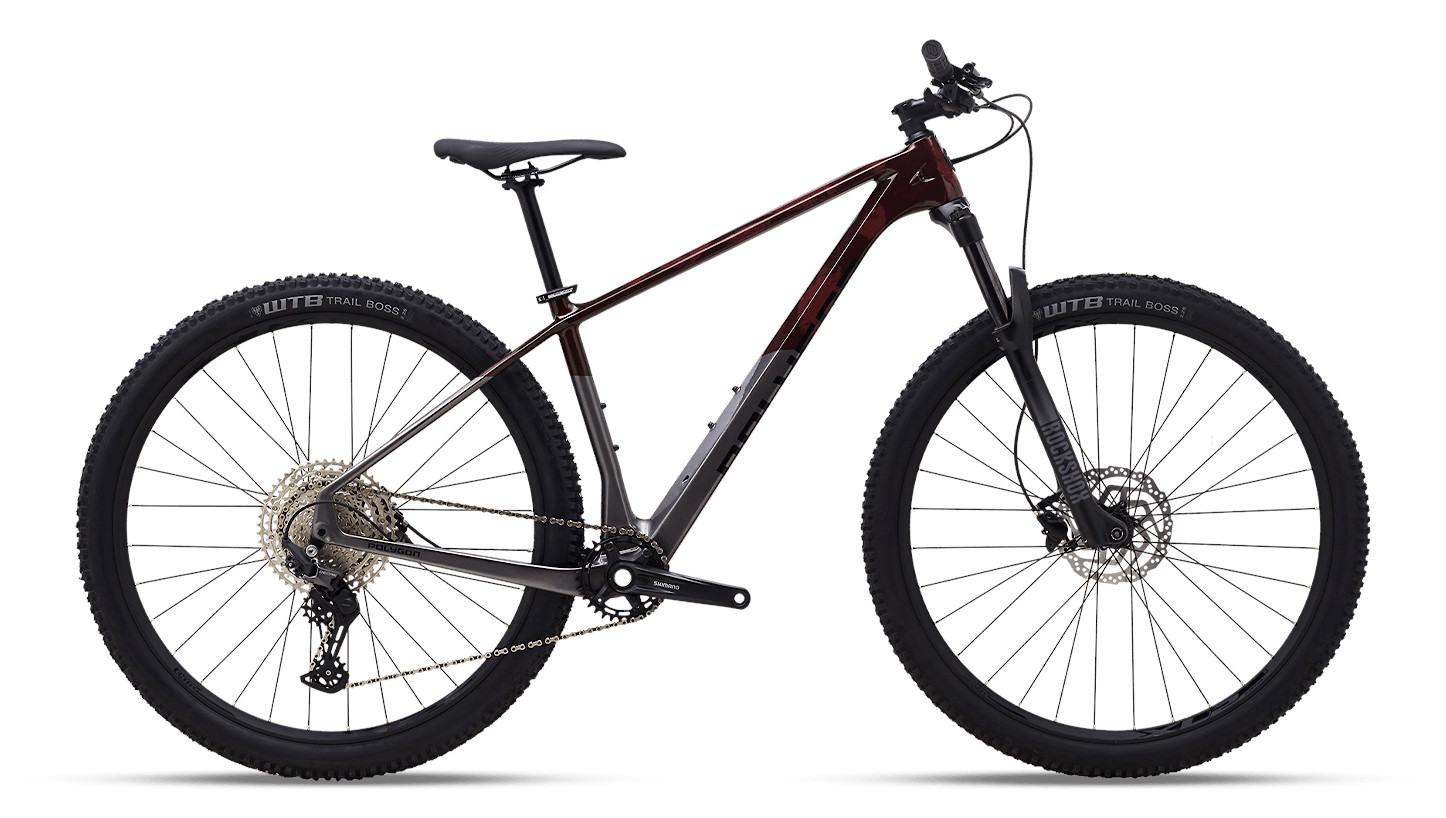

Polygon Syncline C3 Bike
Model Year
2022
Riding Type
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
SM (27.5")
MD (27.5")
MD (29")
LG (29")
XL (29")
Wheel Size
27.5" (650b)
29"
Frame Material
Carbon Fiber
Frame Material Details
ACX performance carbon, Toray T700 and high-modulus M-Series fibers
Rear Travel
Hardtail
Rear Shock
None
Fork
RockShox Recon Silver RL
Fork Travel
120mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Integrated, sealed bearings, IS42/28.6 upper, IS52/40 lower
Handlebar
Entity Xpert, alloy, 740mm width, 12mm rise, 9° backsweep, 31.8mm clamp diameter
Stem
Entity Xpert, alloy, 60mm length, 7° rise, 31.8mm bar clamp
Grips

Brakes
Shimano MT201, 2-piston
Brake Levers
Shimano MT201
Drivetrain
1x
Shifters
Shimano Deore M6100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M6100, 12-speed
ISCG Tabs
None
Chainguide
None
Cranks
Shimano MT510, 2-piece, 170mm length
Chainrings
Shimano MT510, 32 tooth
Bottom Bracket
Shimano MT500, press-fit
Pedals
None
Chain
KMC X-12, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Alloy, double wall
Hubs
Alloy, MICRO SPLINE driver
Spokes

Tires
WTB Trail Boss, 2.25"
Saddle
Entity Void
Seatpost
Entity Xpert, alloy, 350mm length
Seatpost Diameter
27.2mm
Seatpost Clamp
Quick release
Rear Dropout / Hub Dimensions

Max. Tire Size

Bottle Cage Mounts
Two inside front triangle
Colors
Brown Charcoal
Warranty
5 years frame, 2 years Entity components
Weight

Miscellaneous
• 27.5" wheels available in sizes SM/MD
• 29" wheels available in sizes MD/LG/XL
• Internal cable routing
Price
$1,549.00
