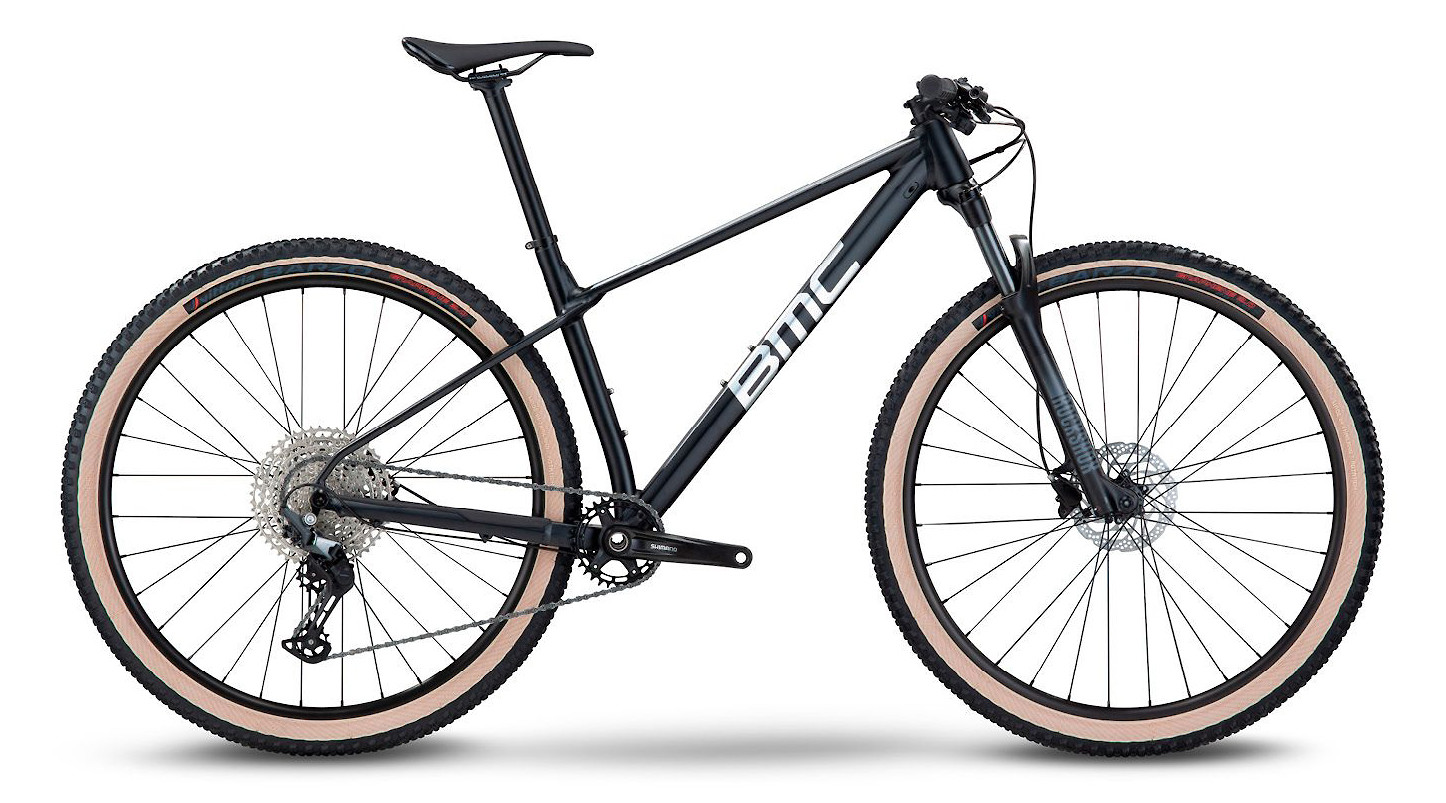

2023 BMC Twostroke AL Three Bike

s1600 photo 158042.jpg?VersionId=jUzRV.nuXgcH8MYMJBW

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free Delivery on purchases over £20.	Browse available Bikes

Specifications

Product

BMC Twostroke AL Three Bike

Model Year

2023

Riding Type

Cross Country

Rider

Unisex

Sizes and Geometry

Size	SM	MD	LG	XL
Top Tube Length	597mm	618mm	638mm	658mm
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	87.0mm	93.5mm	106.0mm	122.5mm
Seat Tube Angle	75°	75°	75°	75°
Seat Tube Length	410mm	440mm	480mm	510mm
Bottom Bracket Height	64mm drop	64mm drop	64mm drop	64mm drop
Chainstay Length	425mm	425mm	425mm	425mm
Wheelbase	1112.5mm	1135.0mm	1161.0mm	1185.0mm
Standover	725mm	730mm	735mm	750mm
Reach	422.5mm	445.0mm	465.0mm	485.0mm
Stack	588mm	598mm	608mm	623mm
Additional Info	All specifications listed are with 100mm travel fork with 505mm axle-to-crown length and 44mm offset

Wheel Size

29"

Frame Material

Aluminum

Frame Material Details

BMC 01 Premium hydroformed smoothwelded aluminum, molded chainstay protection

Rear Travel

Hardtail

Rear Shock

None

Fork

RockShox Judy Silver TK, TurnKey damper, PopLoc remote lockout, 44mm offset

Fork Travel

100mm

Head Tube Diameter

Headset

Handlebar

BMC MFB03 Alloy, 750mm width, 4mm rise, 9° backsweep

Stem

Forged 6061 Alloy
Length: 60mm (SM-LG), 70mm (XL)

Grips

Brakes

Shimano MT200, 2-piston, Shimano RT10 rotors, 160mm (SM/MD) or 180mm (LG/XL) front rotor, 160mm rear rotor

Brake Levers

Shimano MT200

Drivetrain

Shifters

Shimano Deore M6100, 12-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore M6100, 12-speed

ISCG Tabs

None

Chainguide

None

Cranks

Shimano MT510
Length: 170mm (SM), 175mm (MD-XL)

Chainrings

Shimano MT510, 32 tooth

Bottom Bracket

English/BSA threaded

Pedals

None

Chain

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 12-speed, 10-51 tooth

Rims

XCD23

Hubs

Shimano, MT400 front, MT410 148x12mm Boost rear with MICRO SPLINE driver

Spokes

Tires

Vittoria Barzo, 29" x 2.25"

Saddle

Selle Royal Seta

Seatpost

BMC MSP03, zero offset
Length: 350mm (SM), 400mm (MD-XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

148x12mm Boost

Max. Tire Size

58mm (2.28")

Bottle Cage Mounts

Two inside front triangle

Colors

Black

Warranty

3 years frame, 2 years BMC components and paint

Weight

Miscellaneous

• Internal cable routing
• Frame weight: 1850g (size MD with hardware)
• European price: 1899 EUR
• Canadian price: 2699 CAD

Price

$1,899.00
